DETAILS
12-in-1 Highspeed Weighing Packaging Line
Model: YS-LA-CW12
Combined weighing and packing structures for saving installation space and cost, and make sure easy installation and operation.
It is a good solution for packing all kinds of loose, fragile solid material with high speed.
It is a good solution for packing all kinds of loose, fragile solid material with high speed.
Technical data
Model：YS-LA-CW12
Item：12-in-1 HIGHSPEED PACKAGING MACHINE SYSTEM
Sealing Type Center Sealing
Roll Width：140 mm to 420 mm
Bag width：60-200mm
Bag length：50-250mm
System speed：Up to 600bags per min
Packaging range：6~100g/bag
Electrical Supply: 1 Phase, 220 V, AC, 50 Hz
Compressed Air：15 CFM @ 8 Bar
Range of application
Granule, slice, roll or irregular shape products such as Dried fruits, Frozen/fresh vegetable, Candy, Seeds,Snacks,Fries, Coffee, Nuts, Chips, Tea, Herbal, Ginseng slices, Angelica, Pills, Tablets, Capsules and the like;
Optional accessories
Polyethylene seal system
Bag support
Gusset device
Tear notches
Automatic film tracking
Hole punch (Hanger, Euro or Round)
Static eliminator
Encoder for unprinted film
Film splice assist unit
Thermal transfer printer
Bag style

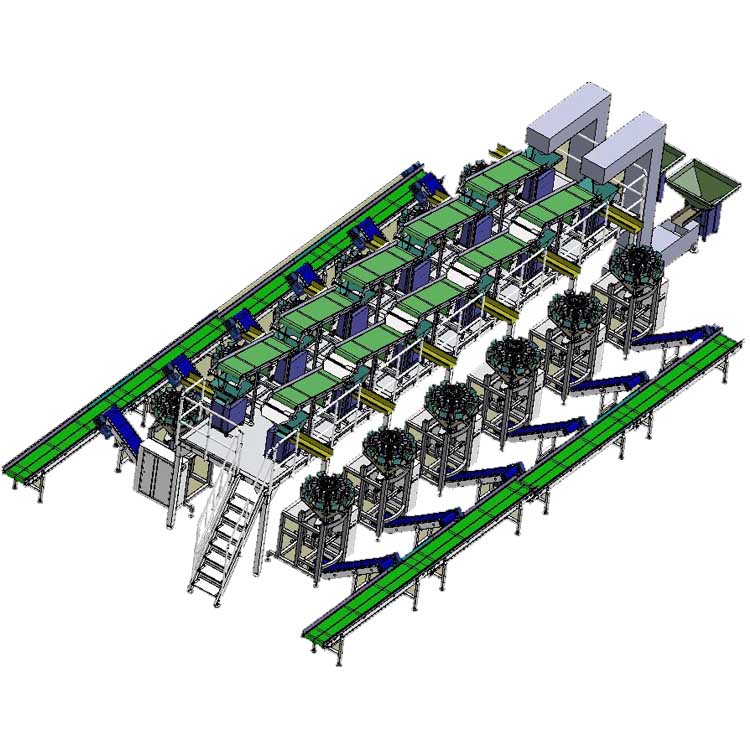

Layout drawing
