DETAILS

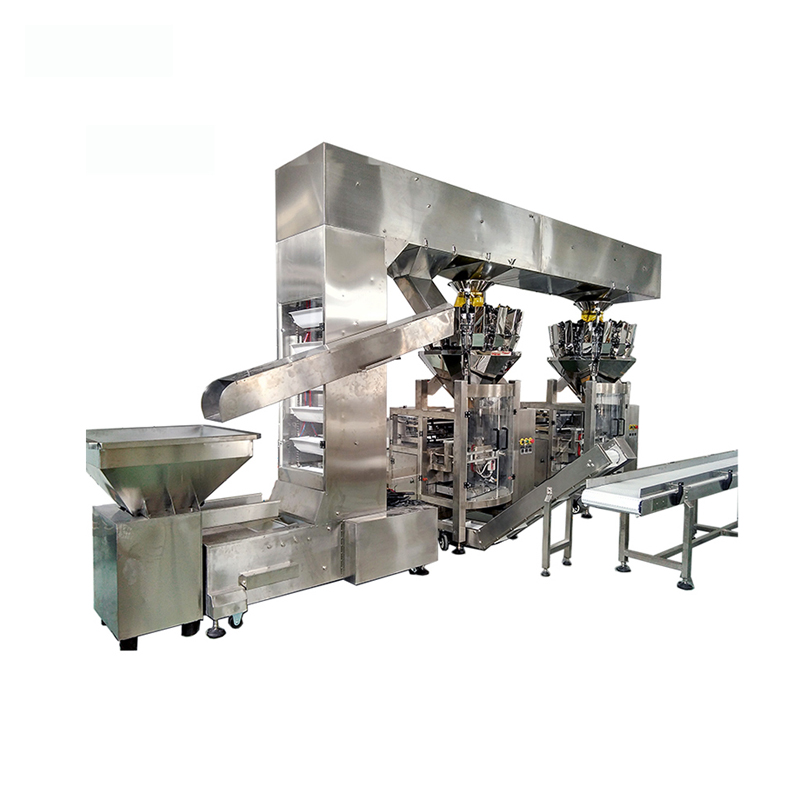

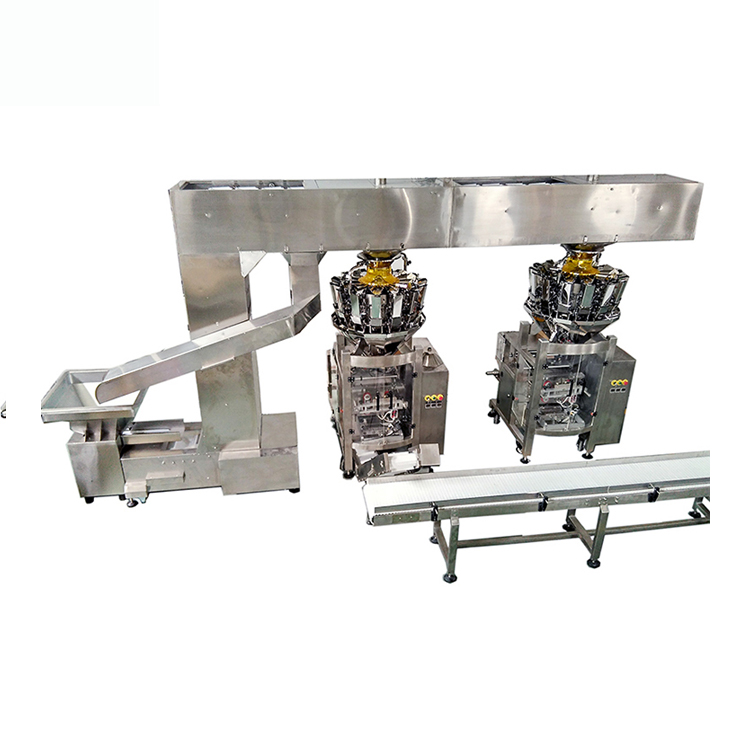

2-in-1 Weighing Packaging Line
Model: YS-LA-CW02
Combined weighing and packing structures for saving installation space and cost, and make sure easy installation and operation. It is a good solution for packing all kinds of loose, fragile solid material with high speed.
Technical data
Item | 2-in-1 Weighing Packaging Line |
Model | YS-LA-CW02 |
Weighing hopper | 10 hoppers |
Hopper volume | 0.5L, 0.8 according to products to be packed |
Weighing range | 3g~1000g according to products features |
Max film width | 420mm |
Packing size | W 60-200mm;L 60-210mm |
Packing speed | 5-60 bags/min |
Compress air | 0.8Mpa, 0.9m/min |
Power supply | 220V, 50Hz, 5KW |
Dimension | 1450x1050x2400mm (1unit) |
Net weight | 850kgs (1unit) |
Min. Installation space | 3x7x3.5M (LxWxH) |
Range of application
Granule, slice, roll or irregular shape products such as Dried fruits, Frozen/fresh vegetable, Candy, Seeds,Snacks,Fries, Coffee, Nuts, Chips, Tea, Herbal, Ginseng slices, Angelica, Pills, Tablets, Capsules and the like;
Bag style

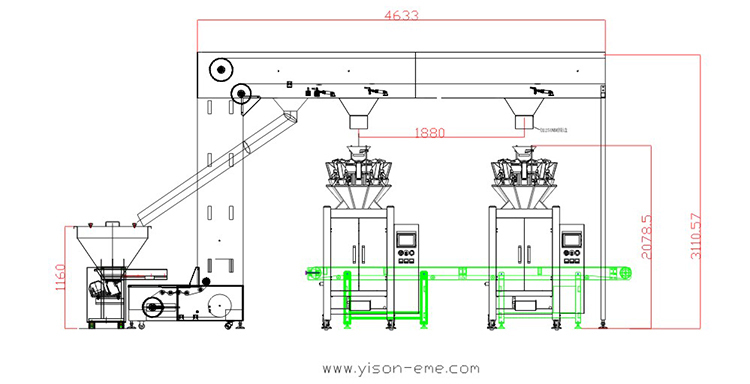

Layout drawing
