DETAILS

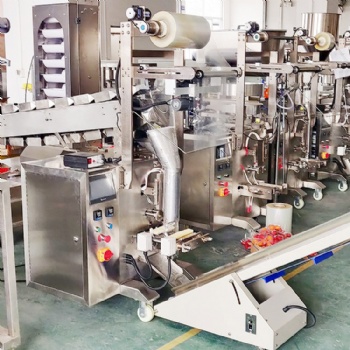

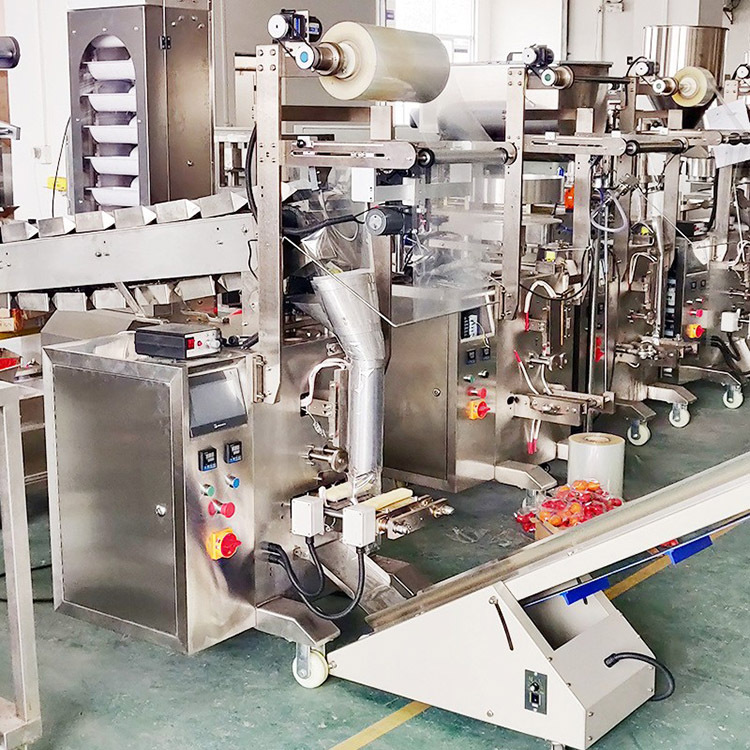

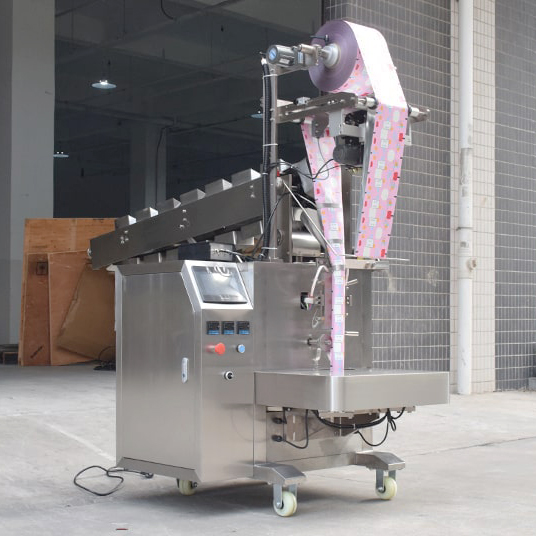

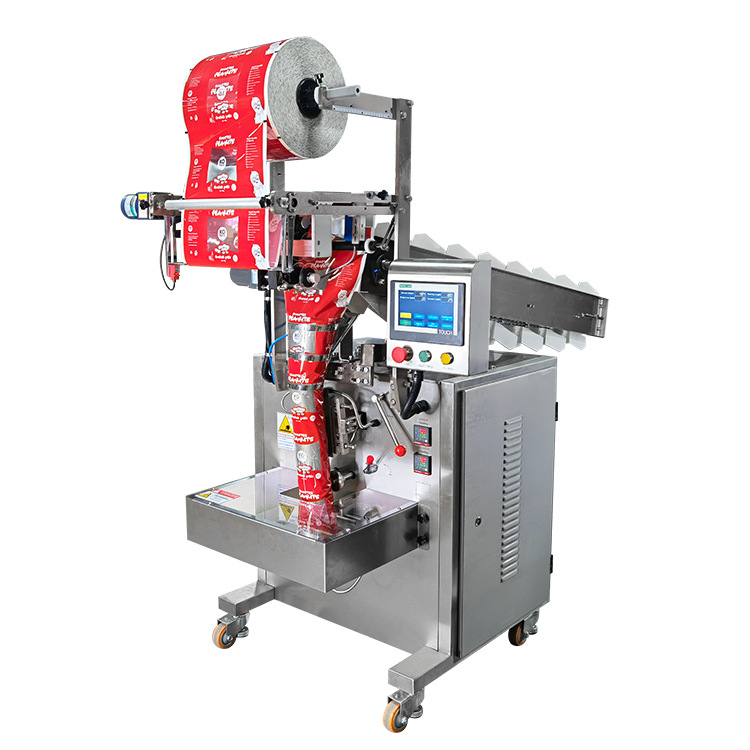

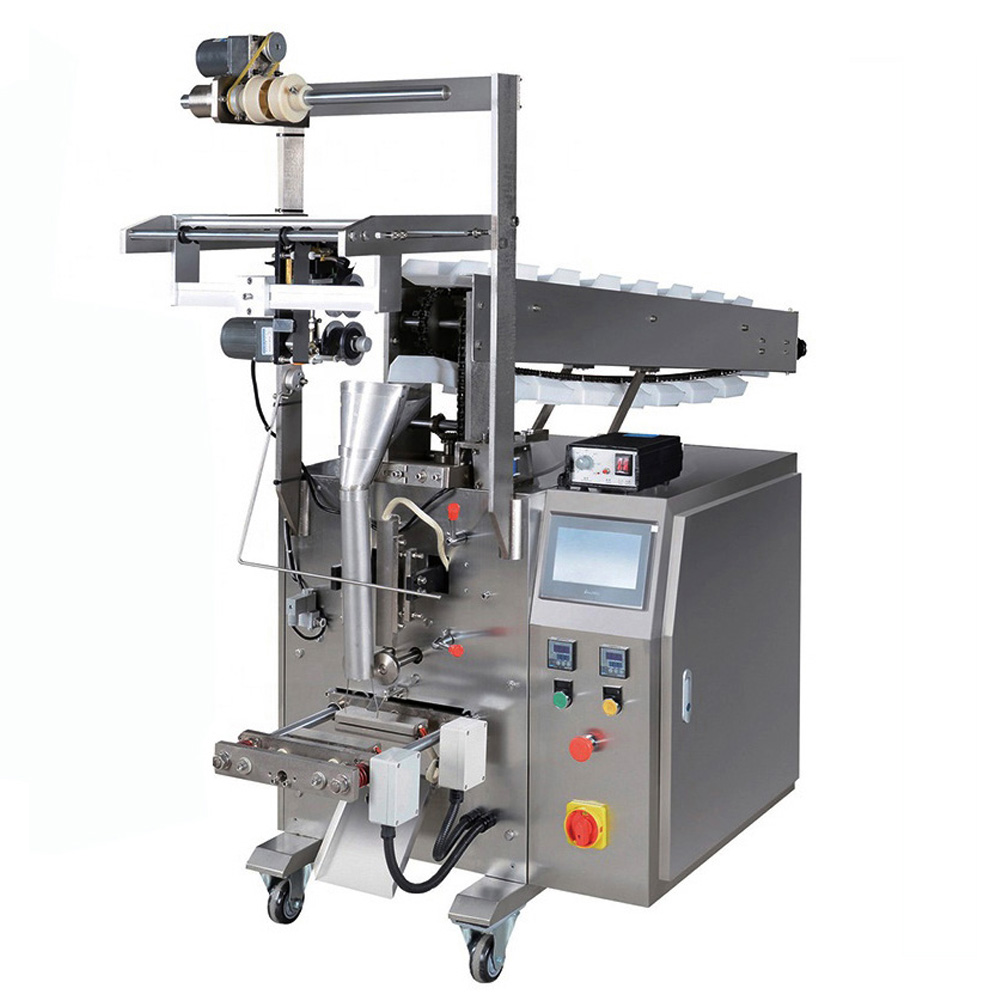

320CC chain bucket manual feeding packing machine is an economical packaging machine, which can improve production efficiency and packaging quality.
It is mainly used for bag packaging of various materials with large-size, special-shaped or non-standard shape.
The open feeding hopper can be widely used in different industries such as food, agricultural products, chemicals, plastics, etc.
Main Features
1) Simple operation: easy to operate, no special skills or training required
2) Strong applicability: The open feeding hopper can be applied to various materials
3) Easy maintenance: the whole machine has no complex system, easy to maintain and maintain, which can reduce maintenance costs and downtime.
Technical details
| Name | 320 Sachet Packing Machine |
| Film width | 60-320mm |
| Bag style | Centre seal (pillow bag), Side seal (3 or 4 side) |
| Bag width | 20-150mm |
| Bag length | 50-200mm |
| Filling method | Manual feeding |
| Filling range | 5-500ml |
| Packing speed | 5-60bags/min |
| Film roll | Outer diameter Max.350mm |
| Film thickness | 0.04-0.08mm |
| Power supply | 220V,50Hz,2.4Kw |
| Air source | 0.35m3/min，0.6MPA |
| Machine weight | 350kg Approx |
| Machine dimension | 930x750x1700mm |
PACKAGING SAMPLES
