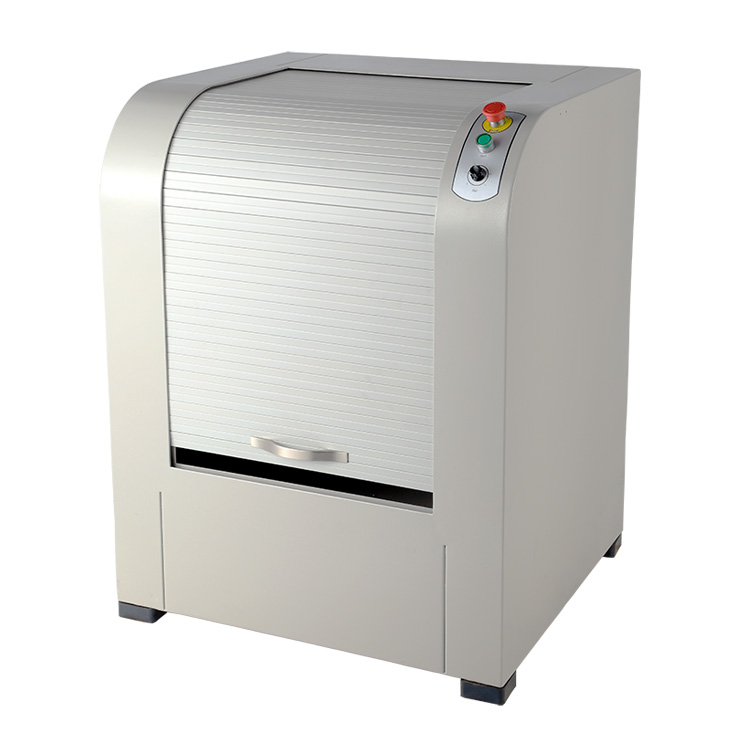

Manual clamping Gyro-mixer
Ink Mixer/Rotating mixer for liquid in drum
Model: YS-2B-1
The Gyro mixing machine (Gyro-mixer) is designed for mixing 1~30kg liquids (in drum).
The bi-axial rotation generated in the machine ensures fast and complete mixing of containerized paint. The machine is rugged, reliable and highly efficient.
Product Description
• Manual Clamping / de-clamping of cans
• Bi-axial gyroscopic rotating action for complete mixing
• Positive lock to prevent can slippage
• Manual clamping device to handle a wide range of product heights
• Plastic folding Door fitted
This Manual clamping Gyro-mixer can have the following combination at which loading of cans be done at one time:
1 x 1L can*
4 x 1L can*
1 x 5L can*
1 x 20L can*
*** Use specially designed adopter supplied with the machine.
Also available optionally rubber caps (to prevent leakeage of liquids) for small plastic continers (0.5~4 litre).
Technical data
Item name: | Manual clamping Gyro-mixer |
Model: | YS-2B-1 |
Mixing time: | Up to 300s |
Loading range: | 1-30kg |
Can diameter range: | 70-300mm |
Can height range: | 100-370mm |
Mixing speed: | 100-150Rpm |
Powder: | 220V,50Hz,750W (110V is available for optional) |
Net weight: | 190kg |
Gross weight: | 250kg |
Packing size: | 760*750*1160mm |
